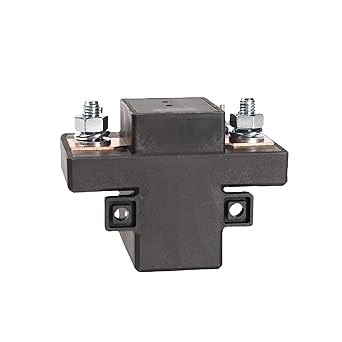

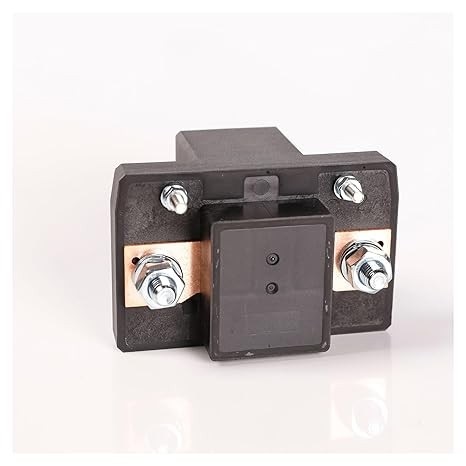

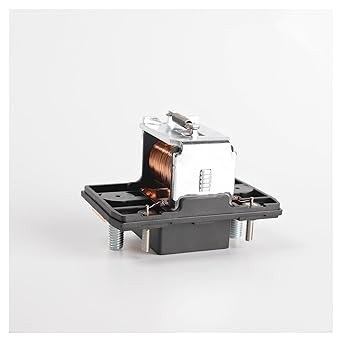

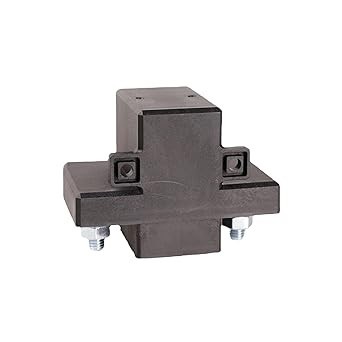

رله 300 آمپر 24 ولت

Technical Specifications

Nominal Voltage: 24 Vd.c.

Coil Resistance: 120±10% Ω

Paralleled Resistance: 2700 Ω

Pick-up Voltage: ≤15 Vd.c. (at 20℃)

Drop-out Voltage: ≥1.6 Vd.c. (at 20℃)

Contact Material: AgSnO₂In₂O₃

Voltage Drop (initial): ≤100 mV (at 13.5 Vd.c., 10 A)

Switching Current: NO 300A, 28Vd.c. (resistive)

Electrical Endurance: 5×10⁴ operations

Mechanical Endurance: 1×10⁷ operations

Insulation Resistance: ≥10 MΩ (at 500 Vd.c.)

Dielectric Strength: 1000 Va.c. for 1 minute

Ambient Temperature Range: -40°C to +85°C

Shell Color: Black

Construction: Sealed
